EPDM extruded rubber strip,EPDM rubber strip



 Material

EPDM rubber seal strip

 Hardness

30 to 95 shore A, tolerance can be ±5 shore A

 Temperature

-40°C to+250°C

 Size

Customized/ OEM

 Color

Any color available

 Application

Automotive,machinery,bathroom facilities,

medical,household electrical appliances etc.

 Performance

Good sealing and damping;  Water resistance;

Anti-aging;   Anti- ozone;    oil-resistant;    pressure resistant;

High and low temperature resistant

 Testing

 Instruments

Vulcanization tester; Tensile tester; Rubber durometer; Imaging size projector;

insulation resistance tester etc.

 Note

Models and Logos can be customized as your requirement

Designs and specification are accepted



Item name

EPDM Rubber seal strip

Size

Customized/standard and nonstandard

Brand Name

DM

Material

EPDM,SILICONE,PVC

Temperature

Common: -40~180

Certificate

 ROHS, PAHS, ISO

Color

Red, Black, White, Clear, grey ,brown ,etc

Features

weather-resistant; heat resistant; abrasion-resistant;sound resistant;insulation;alkaline resistant;shock absorption, etc


EPDM extruded door weather sealing, Rubber seal strips,
epdm seal strip,rubber seal strip manufacture,extruded rubber seal strip

Rubber sealing strip specification.



Item

NR

SBR

NBR

Neoprene

Silicone

Viton

EPDM

Hardness(shore A)

40-85

45-85

10-85

50-80

20-70

70-80

40-85

Tense strength(Mpa)

3-20

2-10

3-20

3-10

6-10

6-8

3-15

Elongation(%)

200-650

200-450

200-500

200-500

200-700

100

200-500

Specific gravity

1.1-1.6

1.4-1.7

1.1-1.6

1.3-1.7

1.2-1.4

1.9

1.4-1.6

Termperature

-75~90

-60~100

-50~120

-50~120

-60~250

-50~300

-60~150


Features:

 EPDM as raw material, very strong anti-old chemical property, durable, convenient installaion, beauty appearance
a wide temperature range resistance (-40 centigrade~ +120 centigrade)
EPDM material used to make surface smooth and, good elasticity, good foam evenly, waterproof performance of first-class, anti-ozone, anti-aging, bears the resolver performance to be good.

Application :

Railcars, automobile, steamboat, industrial electrical equipment, building door & window, construction machinery, construction bridge and tunnel etc.

a.automotive: door, truck, truck crap, window seals spacers for wheel wells, window weather striping

b.building products: curtain wall frames, OEM window seals, door seals slider door seals, tract and channel seals

c.window and door: various door seals, edge guards, egress window frames, garage door seals.

d.containers: drums, barrels, safes and case seals.

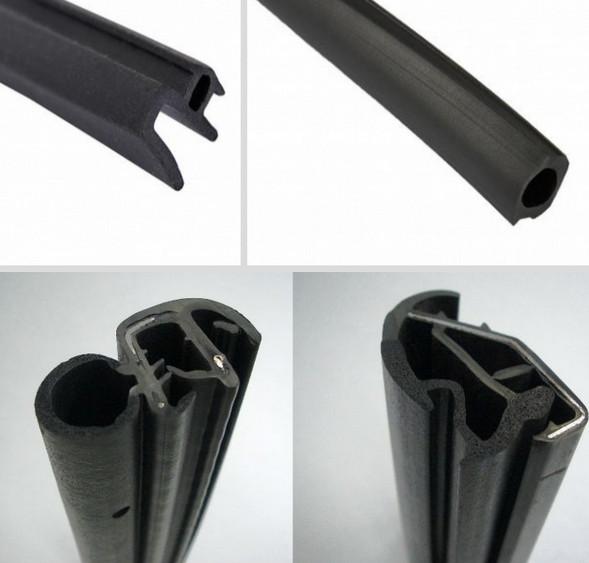

EPDM Rubber Seal strip
